Power Electronics And SVG Aluminum Air Oil Cooler For Gearbox Lubricating System

Power Electronics And SVG Aluminum Air Oil Cooler For Gearbox Lubricating System

MOQ: 1
Standard Packaging: Wooden Case
Delivery Period: 30days
Payment Method: T/T
Detail Information
Place of Origin
China
Brand Name
YUDA
Certification
CE ISO9001
Application:
Chemical,Food,Commodity,Medical,Beverage
Weight:
5-500KG Customized,700 Kg,N/A,55 Kg,15.5t
Dimension(l*w*h):
510x455x300mm,customized,650*450*450mm,1150x1275x1240mm,12m*2.2*2.35
Voltage:
Can Be Customized,220v/380v/customized,220V,380V/50HZ,380V
Material:
Stainless Steel,Q195 Q235 Q345,Die-casting Aluminum,Steel + NdFeB And Alnico Magnet,Metal
Cooling Type:
Air Cooler
Automatic Grade:
Semi-Automatic,Automatic
Driven Type:
Electric,Manual
Rated Power:
80KW,1 ~ 5000kW,10kva-1000kva,80KW/100KVA
Packaging Type:
Glass,Cartons,bottles,Film
Highlight:

Power Electronics hydraulic oil heat exchanger

,

SVG hydraulic oil heat exchanger

,

Aluminum air oil cooler

Product Description

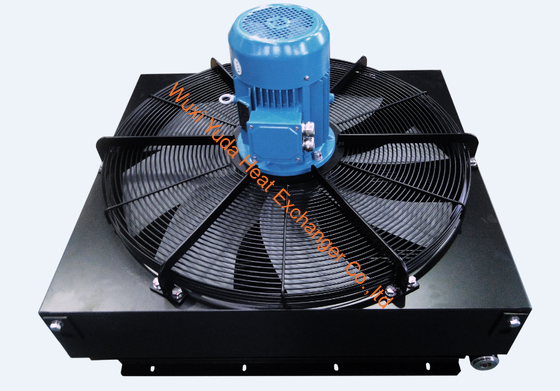

Power Electronics and SVG Aluminum Air Oil Cooler for Gearbox Lubricating System with High Heat Conductivity Core and Corrosion Resistant C4
Designed for gearbox lubricating systems in power electronics and SVG applications, this aluminum air oil cooler features a high heat conductivity core and corrosion resistant C4 coating. It delivers reliable thermal management under high load conditions while optimizing air and oil flow design to ensure stable cooling performance, reduce overheating risks, and extend gearbox service life in demanding industrial environments.
Product Specifications
Product Model B11640
Application For Variable-frequency Drive
Material Aluminum
Cooling Type Air cooler
Core Dimensions 870*840*94mm / 34.25*33*3.7"
External Dimensions 1000*930*714mm
Technical Features
  • High Heat Conductivity Core
    The aluminum core is designed for fast and efficient heat transfer, ensuring stable temperature control for gearboxes used in power electronics and SVG systems.
  • Corrosion Resistant C4 Coating
    A C4 grade surface treatment protects the air oil cooler from corrosion, making it suitable for harsh industrial and outdoor operating environments.
  • Optimized Air and Oil Flow Design
    The internal flow channels are engineered to improve cooling efficiency while maintaining consistent oil circulation under varying load conditions.
  • Lightweight Aluminum Structure
    The all-aluminum construction reduces overall system weight while maintaining high mechanical strength and long-term durability.
  • Stable Performance for Continuous Operation
    Designed for continuous duty, the cooler supports reliable operation in high temperature and high load power electronics applications.
  • Easy System Integration
    Standardized connections and a compact structure allow easy integration into existing gearbox lubricating systems and SVG installations.
Environmental Specifications
  • Altitude: 0~1200m
  • Working Environment: Corrosive conditions, saline atmosphere, pumice sand
  • Ambient Temperature: -40℃ to +60℃
  • Corrosion-proof Grade: C4
  • Relative Humidity: Maximum 100%
Wind Power Application Features
Equipped with multi-wing PAG fan and anodic oxidation treatment on cooler. Corrosion-proof grade: C4. Successfully tested and in bulk production, performing reliably in field applications.
Current industry standards for offshore wind power applications utilize either anodic oxidation treatment or electrophoretic processing. Corrosivity resistant levels comply with ISO12944 standards: C3/C4/C5-I/C5-M.
