New Energy Power Generation 85KW Cooling Capacity Closed Loop Water Cooling System
| MOQ: | 1 |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 30days |
| Payment Method: | T/T |
Detail Information
Place of Origin
China
Brand Name
YUDA
Certification
CE ISO9001
Model Number
LSF-85kw
Application Industry:
New Energy Wind Power Solar Power Generation
Cooling Capacity:
85 KW
Cooling Method:
Closed Loop Water Cooling System
Control Method:
Intelligent Temperature Control
Rated Flow Rate:
30 To 120 L Per Minute
Rated Water Flow Rate:
140 To 150 Liters Per Minute
Main Material:
Industrial Grade Aluminum
Ambient Temperature Range:
Minus 20 To 45 Degrees Celsius
Power Supply:
AC 380V 50 Hz Or Customized
Highlight:
water cooling system New Energy
,85KW water cooling system
,New Energy water based cooling systems
Product Description
85KW Cooling Capacity Closed Loop Water Cooling System with Industrial Grade Aluminum for New Energy Power Generation
This advanced 85KW water cooling system is specifically engineered for new energy wind and solar power generation applications within petroleum and petrochemical facilities.
Application Scenarios
The 85KW Petroleum and Petrochemical Grade Water Cooling System is deployed in refineries, chemical plants, oil and gas processing facilities, and energy distribution units where new energy wind and solar power systems are installed. This solution supports both primary and auxiliary power systems and is suitable for containerized power units, substation environments, and protected outdoor installations worldwide, including desert, coastal, and industrial zones.
Key Features
- Modular design with exhaust and drain valves for easy maintenance
- Comprehensive system includes main circulating pump, electric three-way valve, filter, heater, expansion tank, and air cooler
- Advanced temperature and pressure monitoring with independent operation capability
- Remote control support via terminal and serial port communication
- Constructed with stainless steel, aluminum alloy, and EPDM materials for corrosion resistance
- Designed for harsh environments including cold, wind/sand, and salt fog conditions
- Special corrosion protection solutions for offshore and marine platform applications
Technical Specifications
| Heat dissipation power range | 10-200kW |
| Cooling medium flow range | 3-20m³/h |
| Temperature difference (inlet vs ambient) | ≥5℃ |
| Cooling medium | Pure water and ethylene glycol antifreeze |
| Antifreeze concentration | 0-55% |
| System static pressure | 0.15MPa |
| Design pressure | 0.8MPa |
Operating Conditions
| Operating Ambient Temperature | Minus 30 to 55 degrees Celsius |
| Storage Temperature | Minus 40 to 70 degrees Celsius |
| Relative Humidity Range | 5 to 98 percent non condensing |
| Maximum Installation Altitude | 3000 meters above sea level |
| Allowable Vibration Level | 5 to 500 Hz at 0.5 g acceleration |
Applications
Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.

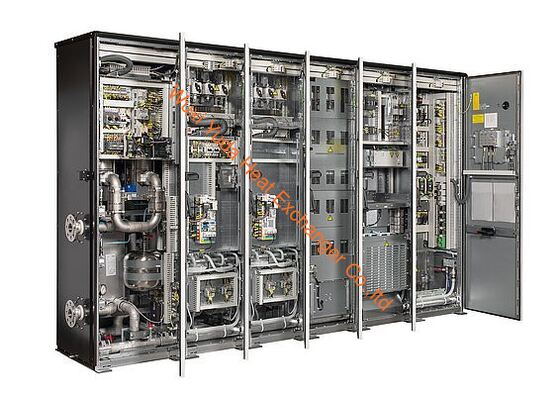

System Images
