New Energy Wind And Solar Power Generation 85KW Marine Industry Water Cooling System
| MOQ: | 1 |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 30days |
| Payment Method: | T/T |
Detail Information
Place of Origin
China
Brand Name
YUDA
Certification
CE ISO9001
Model Number
LSF-85kw
Rated Cooling Capacity:
85 KW ±5 Percent
Operating Temperature:
Minus 20 Degrees Celsius To 45 Degrees Celsius
Nominal Water Flow Rate:
145 L Per Minute
Power Supply:
AC 380V 50 Hz Or Customized
Rated Flow Rate:
30 To 120 L Per Minute
Heat Exchange Type:
High Efficiency Plate Heat Exchanger
Power Consumption:
Less Than 4.8 KW
Optional Material:
Stainless Steel
Design Service Life:
More Than 10 Years
Highlight:
New Energy water cooling system
,85KW water cooling system
,Marine Industry liquid cooling system
Product Description

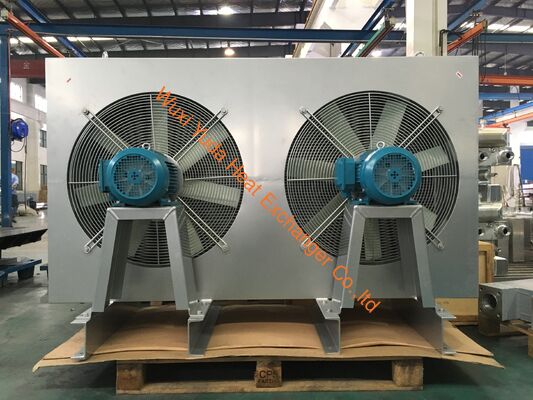

85KW Marine Industry Water Cooling System for New Energy Wind and Solar Power Generation
The 85KW Marine Industry Water Cooling System is a high-performance thermal management solution specifically engineered for demanding marine and offshore environments. Designed to support modern renewable energy systems, this water cooling system provides stable and efficient heat dissipation for power electronics in wind power and solar power generation projects. With its robust construction and reliable cooling capacity, it meets the stringent operational requirements of the global marine industry.
This system features a closed-loop water circulation design that ensures consistent temperature control while protecting internal components from corrosion and contamination. The optimized heat exchanger structure enables continuous operation even under high load and fluctuating environmental conditions typical of marine applications.
Key Features
- Modular design with exhaust and drain valves for simplified maintenance
- Comprehensive system includes main circulating pump, electric three-way valve, filter, heater, expansion tank, and air cooler
- Advanced temperature and pressure monitoring with independent operation capability
- Remote control support via terminal and serial port communication
- Constructed with stainless steel, aluminum alloy, and EPDM materials for superior corrosion resistance
- Engineered for harsh environments including cold, wind/sand, and salt fog conditions
- Special corrosion protection solutions for offshore and marine platform applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Cooling Capacity | 85 kW ±5% |
| Nominal Water Flow Rate | 145 L per minute |
| Inlet Water Temperature | 18 to 32 degrees Celsius |
| Maximum Working Pressure | 1.0 MPa |
| Power Consumption | Less than 4.8 kW |
| Temperature Control Accuracy | ±1 degree Celsius |
| Design Service Life | More than 10 years |
Operating Conditions
| Parameter | Value |
|---|---|
| Storage environment relative humidity | ≤95% |
| Operating environment temperature | -40℃ to 40℃ |
| Operating environment relative humidity | ≤95% |
| Altitude | ≤3000m |
| Power supply | AC380V ±10%, 50 ±1Hz |
Applications
Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.
