Marine Industry Industrial Air To Air Heat Exchanger For Gearbox Lubricating Systems
| MOQ: | 1 |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 30days |
| Payment Method: | T/T |
Detail Information
Place of Origin
China
Brand Name
YUDA
Certification
CE ISO9001
Cooling Type:
Air Oil Cooling
Weight:
5-500KG Customized,700 Kg,N/A,55 Kg,15.5t
Core Fin Density:
12–16 FPI Fin Configuration
Rated Oil Flow Rate:
50–150 L/min
Fan Service Life:
≥ 40,000 Hours
Thermal Efficiency:
≥ 92 Percent
Maximum Oil Viscosity:
≤ 320 CSt
Power Supply Options:
AC380V 50Hz / AC440V 60Hz
Salt Spray Resistance:
≥ 720 Hours Neutral Salt Spray Test
Oil Connection Size:
DN25–DN40 Optional
Highlight:
50L/min Industrial Air To Air Heat Exchanger
,150L/min Industrial Air To Air Heat Exchanger
,50L/min air to air heat exchanger
Product Description

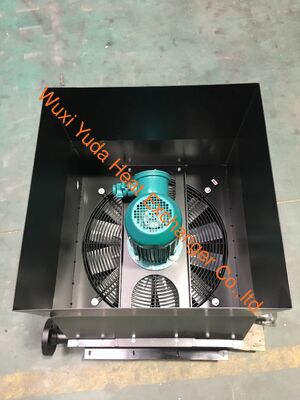

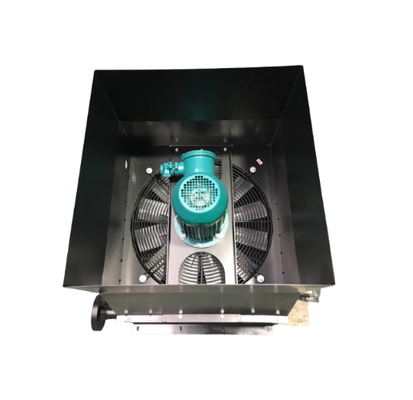

Marine Industry Grade Aluminum Air Oil Cooler
High-performance air oil cooler specifically designed for gearbox lubricating systems in marine applications, featuring advanced thermal management and superior corrosion resistance.
Product Specifications
| Heat Dissipation Capacity | Up to 85 kW |
| Application Industry | Marine Industry |
| Core Material | High thermal conductivity aluminum alloy |
| Corrosion Resistance | C4 grade for marine environments |
| Maximum Oil Working Pressure | 1.6 MPa |
| Cooling Air Flow | 6,000-12,000 m³/h |
Technical Features
- Fin Types: Plain Fin, Perforated Fin, Wavy Fin, Louvered Fin, Serrated Fin
- Core Construction: High strength, high heat conductivity, high safety coefficient
- Sonicleaning: High efficiency, minimal metal corrosion, low pollution
- Vacuum Brazing: Strict control of vacuum degree, temperature and time
- Argon Welding: Straight weld gaps, uniform squamous appearance
- Quality Testing: Comprehensive air tightness and pressure testing
Environmental Specifications
- Operating altitude: 0-1200 m
- Ambient temperature range: -40°C to +60°C
- C4 grade corrosion resistance
- Suitable for saline and corrosive environments
- Supports up to 100% relative humidity
Wind Power Application Features
Multi-Wing PAG Fan
Equipped with advanced fan technology for optimal airflow
Anodic Oxidation Treatment
Enhanced surface protection on cooler components
Proven Performance
Successfully tested and in bulk production, performing reliably in field applications
Industry Compliance
Current industry standards for offshore wind power applications utilize either anodic oxidation treatment or electrophoretic processing. Corrosivity resistant levels comply with ISO12944 standards: C3/C4/C5-I/C5-M.
