Power Electronics Grade Aluminum Oil Cooler Heat Exchanger For Gearbox Lubricating Systems
| MOQ: | 1 |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 30days |
| Payment Method: | T/T |
Detail Information
Place of Origin
China
Brand Name
YUDA
Certification
CE ISO9001
Cooling Type:
Air Oil Cooling
Noise Level:
≤ 75 DB At 1 M
Applicable Oil Types:
Gear Oil ISO VG 32–320
Rated Oil Flow Rate:
50–150 L/min
Maximum Working Pressure:
1.6 MPa
Air Flow Volume:
2,000 – 12,000 M³/h
Fan Configuration:
Axial Fan Direct Drive
Power Supply Options:
AC380V 50Hz / AC440V 60Hz
Mounting Type:
Horizontal Or Vertical Installation
Maximum Oil Inlet Temperature:
≤ 150 ℃
Highlight:
Power Electronics Oil Cooler Heat Exchanger
,Aluminum Oil Cooler Heat Exchanger
,Aluminum water oil heat exchanger
Product Description

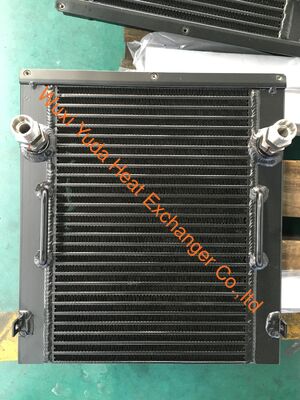

Power Electronics Grade Aluminum Air Oil Cooler for Gearbox Lubricating Systems
High-performance air oil cooler specifically designed for gearbox lubricating systems in variable-frequency drive applications, featuring advanced thermal management and corrosion resistance capabilities.
Product Specifications
| Product Model | B11640 |
|---|---|
| Application | Variable-frequency Drive |
| Working Pressure | Up to 1.0 MPa |
| Operating Temperature Range | -40℃ to +120℃ |
| Core Dimensions | 870*840*94mm / 34.25*33*3.7" |
| External Dimensions | 1000*930*714mm |
Technical Features
- Multiple Fin Structures - Supports plain, perforated, wavy, louvered and serrated fin designs for optimized heat exchange efficiency.
- Reinforced Core Design - High mechanical strength with enhanced thermal conductivity and operational safety.
- Advanced Sonic Cleaning - Efficient impurity removal with low corrosion risk and environmentally friendly processing.
- Controlled Vacuum Brazing - Precise regulation of vacuum level, brazing temperature and cycle duration.
- High Precision Argon Welding - Smooth weld seams with consistent appearance and structural integrity.
- Full Performance Inspection - Each unit undergoes air tightness verification and pressure endurance testing.
Environmental Specifications
Altitude: 0~1200m
Working Environment: Corrosive conditions, saline atmosphere, pumice sand
Ambient Temperature: -40℃ to +60℃
Corrosion-proof Grade: C4
Relative Humidity: Maximum 100%
Wind Power Application Features
Equipped with multi-wing PAG fan and anodic oxidation treatment on cooler. Corrosion-proof grade: C4. Successfully tested and in bulk production, performing reliably in field applications.
Current industry standards for offshore wind power applications utilize either anodic oxidation treatment or electrophoretic processing. Corrosivity resistant levels comply with ISO12944 standards: C3/C4/C5-I/C5-M.
